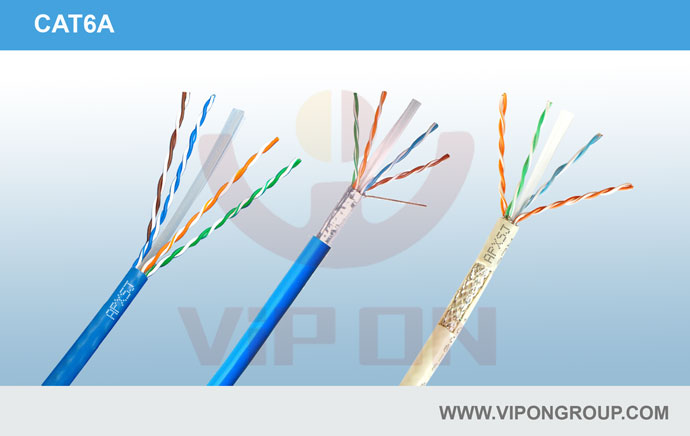

CAT6A | 超六类局部区域网络电缆
Part No. |
Item |
Cond. mm |
Insulation |
Shield |
Jacket |
E604-1 |
4 Pairs CAT6A UTP |
Φ0.57 BC |
PE Φ1.0 |
/ |
Φ6.5 PVC Flame Retardant |
E604-2 |
4 Pairs CAT6A FTP |
Φ0.57 BC |
PE Φ1.0 |
Al-Foil |
Φ7.2 PVC Flame Retardant |
E604-3 |
4 Pairs CAT6A SFTP |
Φ0.57 BC |
PE Φ1.0 |
Al-Foil + Braid |
Φ7.5 PVC Flame Retardant |
CAT6A Electrical Characteristics | 超六类局部区域网络电缆电气性能
MHz |
Ohm |
RL ≥dB |
Attenuation ≤dB/100m |
Next 近端串音 ≥dB |
PS NEXT近端串音功率和 ≥dB/100m |
ELFEXT远端串音 ≥dB/100m |
PS ELFEXT远端串音功率和 ≥dB/100m |
1.0 |
100±15 |
20.0 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
4.0 |
100±15 |
23.0 |
3.8 |
65.3 |
63.3 |
55.8 |
52.7 |
8.0 |
100±15 |
24.5 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
10.0 |
100±15 |
25.0 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
16.0 |
100±15 |
25.0 |
7.6 |
56.2 |
54.2 |
43.7 |
40.7 |
20.0 |
100±15 |
25.0 |
8.5 |
54.8 |
52.8 |
41.8 |
38.8 |
25.0 |
100±15 |
24.3 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
31.25 |
100±15 |
23.5 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
62.50 |
100±15 |
21.5 |
15.4 |
47.4 |
45.4 |
31.9 |
28.9 |
100.0 |
100±15 |
200 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
200.0 |
100±22 |
18.0 |
29.0 |
39.8 |
37.8 |
21.8 |
18.8 |
250.0 |
100±32 |
17.3 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
300.0 |
100±32 |
16.8 |
36.4 |
37.1 |
35.1 |
18.3 |
15.3 |
400.0 |
—— |
16.0 |
43.0 |
35.3 |
33.3 |
15.8 |
12.8 |
500.0 |
—— |
15.2 |
48.9 |
33.8 |
31.8 |
13.8 |
10.8 |
650.0 |
—— |
14.4 |
57.2 |
32.1 |
30.1 |
—— |
—— |
