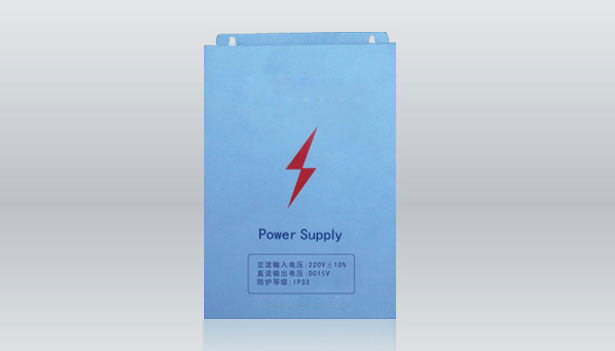

It is used to supply power for administration unit, outdoor unit, indoor unit and middle accessories. Each power supply can support 12 to 14 indoor units

Technical Data:

Input power	AC 220 V ±10%
Output power	Double-groupDC15V ± 5%
Working temperature	-35℃～+60℃
Working Humidity	< 90%
Entering bore diameter	25mmdiameter
Backup battery capacity	6 V/ 4 Ah X 3pcs (not supplied)
Maximum output current	4A
Installation	Surface mounting
Outline Dimensions	(H)242 x (W)155 x (D)82 mm
