H.264 compression, Support one SATA HDD,each max up to 2TB(SD Card each max up to 32GB)
| CMOS camera | Dome camera | Waterproof camera | Diving camera |
| Image Device | 1/4 Color CMOS | 1/4 Color CMOS | 1/4 Color CMOS |
| IR led | 24 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, |
| Horizontal definition | 420TV line | 420TV line | 420TV line |
| Night vision | 0lux,20m IR distance | 0lux,20m IR distance | 0lux,20m IR distance |
| CMOS camera | Dome camera | Waterproof camera | Diving camera |
| Image Device | 1/4 Color CMOS | 1/4 Color CMOS | 1/4 Color CMOS |
| IR led | 24 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, |
| Horizontal definition | 420TV line | 420TV line | 420TV line |
| Night vision | 0lux,20m IR distance | 0lux,20m IR distance | 0lux,20m IR distance |
| Video Compression Format | H.264 |
| Video System | NTSC / PAL |
| GUI OSD | YES |

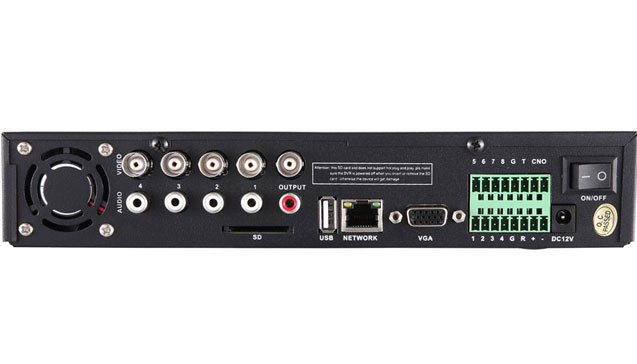

| Video Input(BNC) | 4CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
| Video Output(BNC) | 1CH BNC output |
| Audio Input/Output | 4CH audio input,1CH audio output(RCA) |
| Maximum Recording Rate(each channel support at D1 real-time) | D1:704×480 pixels with 120 IPS /704×576 pixels with 100 IPS HD1:352×480 pixels with 120 IPS /352×576 pixels with 100 IPS CIF:352×240 pixels with 120 IPS /352×288 pixels with 100 IPS QCIF:176×120 pixels with 120 IPS /176×144 pixels with 100 IPS |
| Image Quality Setting | Supper Best, Well, Good, Medium, Normal and Bad |
| Hard Disk Storage | Support one SATA HDD, each max upto 2TB(SD Card each max upto 32GB) |
| Alarm Input/Output | 4 alarm input,1 alarm output |
| Multiplex Operation | Live display/record/playback/backup/network transmit |
| Recording Mode | Manual/Timer/Motion |
| Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. |
| Backup Device | USB flash drive,USB hard disk,USB CD/RM,SD and network backup |
| Pre-alarm Recording | Recording for 10 seconds before alarming |
| Network Protocol | TCP/IP、PPPOE 、DDNS and NTP |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
| CMS software | YES |
| Mobilephone View | YES |
| VGA Interface | YES |
| Log record function | YES |
| Image Tour | YES |
| IR Remote control | YES |
| Video Loss Detection | YES |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
| PTZ Control | YES,built-in RS-485 port |
| USB Mouse | YES |
| Power Source | DC 12V |
| Key Lock(Password Protection) | YES |
| Power-down recovery function | YES |
