H.264 compression, Operating system: Embedded Linux, the stability is very good.
| Sony CCD camera | Dome camera | Waterproof camera |
| Image Device | 1/3 Sony CCD | 1/3 Sony CCD |
| IR led | 24 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, |
| Horizontal definition | 420TV line | 420TV line |
| Night vision | 0lux,20m IR distance | 0lux,30m IR distance |
| Video Compression | H.264 |
| Audio Compression | ADPCM |
| Operation System | Embedded Linux,with IR remote controller. Support remote view with Mobile Phones (based on Windows Mobile and Symbian S60, iPhone,Blackberry &Android operation system) |
| Resolution | Display(D1):704*576(PAL),704*480(NTSC) Record(CIF):352*288(PAL),320*240(NTSC) |
| Rate | 400fps(PAL),480fps(NTSC) |
| Operation Interface | Support USB mouse,Panel button,and remote controller |
| Hard Disk(HD) | Support 2SATA hard disk up to 4000GB capacity |
| VGA Output | YES |
| Record mode | Manual,timing,alarm,motion detection |
| Record search | Time,event,channel,diary search |
| Record save | Local hard disk,network |
| Backup mode | Network,USB,SATA hard disk record backup |

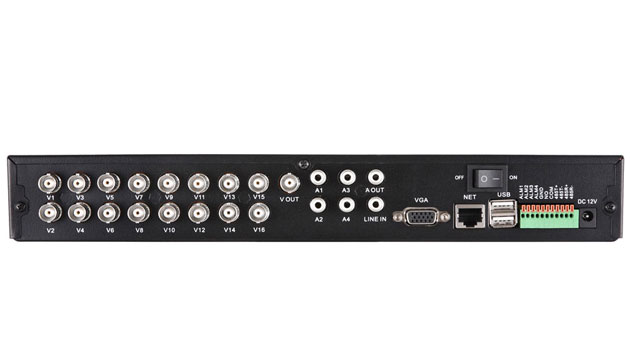

| Video input | 16CH BNC |
| Video output | 1CH BNC,1CH VGA output |
| Audio input | 4CH RCA |
| Audio output | 1CH RCA,and 1CH interphone |
| Alarm input | 4CH |
| Alarm output | 1CH |
| Image control | 6 grade adjustable |
| Motion detection | Yes |
| Local playback | 1CH--16CH playback simultaneously |
| Network | RJ45,10M/100M self adaptive Ethernet port; Support HTTP,SMTP, FTP,DDNS,PPOE network protocol |
| USB interface | 2 USB2.0 high speed interface |
| Support languages | 15 kinds languages: English,Simplified Chinese,Traditional Chinese(Big5), Portuguese,Spanish,Turkish,Hungarian,French,German,Polish,Persian, Italian, Russian,Japanese,Thai |
