Mobilephone survelliance(Mobile,Symbian,iPhone,Blacknerry & Android operation system), Dual-Stream,
| Sony CCD camera | Dome camera | Waterproof camera | Diving camera |
| Image Device | 1/3 Sony CCD | 1/3 Sony CCD | 1/3 Sony CCD |
| IR led | 24 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, | 36 pcs of ￠5 IR led, |
| Horizontal definition | 420TV line | 420TV line | 420TV line |
| Night vision | 0lux,20m IR distance | 0lux,30m IR distance | 0lux,30m IR distance |
| System | Operating System | Embedded LINUX |
| Control Mode | Front panel, USB mouse, IR remote control | |

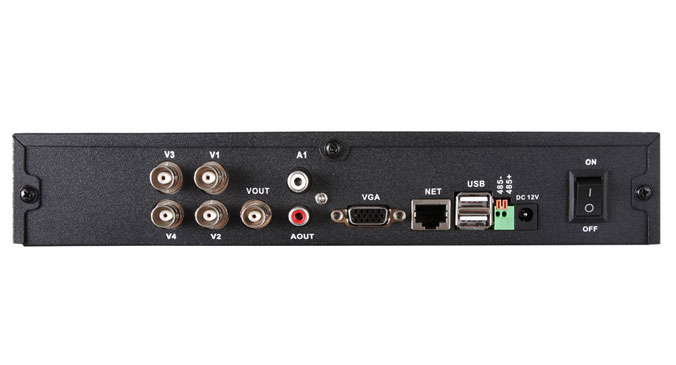

| Video | Input | 4 CH BNC |
| Output | 1 CH BNC & 1 CH VGA | |
| Audio | Input | 1CH RCA |
| Output | 1CH RCA | |
| Display | Display Split | 1/4 |
| Live Resolution | D1 (PAL:704x576 NTSC:704x480) | |
| Recording | Video/Audio Compression | H.264 / ADPCM |
| Video Detection&Alarm | Trigger Events | MD(motion detection), Sensor triggered, Video loss, HDD error and full |
| Motion Detection | Zones: 396(22×18) sensitivity adjustable | |
| Alarm Input | no | |
| Alarm Output | no | |
| Playback&Backup | Playback | 4ch CIF playback resolution |
| Search Mode | Time、Date、Event、Channel | |
| Backup Mode | USB Device / Network / SATA hard disk record | |
| Network | Protocol | TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS(supply BUILT-IN DDNS domain name), |
| Remote Operation | IE control、CMS | |
| Hard Disk | Hard Disk | 1 SATA HDD Up to 2TB |
| Auxiliary Interface | USB Interface | 2 USB2.0 interface |
| RJ45 | 1x for network | |
| RS485 | 1x for PTZ control | |
| Environmental | Power Supply | DC12 3-5A |
| Working Environment | -10℃~+50℃ / 10~80%RH / 86~106kpa | |
| Dimension | 260*215*45mm | |
| Weight(without HD) | 1.1KG | |
| Package | 1pc/color box,box size:38.5*11.5*30cm,8pcs/ctn,ctn size:48*40.5*63cm |
