CCTV DVR

VE-CDL378

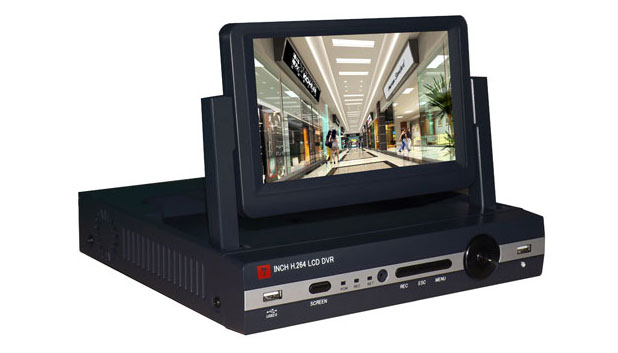

The LCD DVR with a flexible Bracket, It can support 120 Degree rotate and LCD Screen can support 330 Degree rotate.

The LCD DVR with a flexible Bracket, It can support 120 Degree rotate and LCD Screen can support 330 Degree rotate.
Integrate 7inch digital LCD, the screen resolution up to 1024X768.
P2P remote operation
Support VGA and CVBS synchronous output.
Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
Support one key to run recording function.
Support holiday recording and snapshot setup.
Support schedule snapshot, manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot.
Support search, playback, backup the recording according to events; support playback and search pictures in local.
Support smart search in the self-defined areas in the playback of the recording
Support 1 SATA port
Support 8CH CIF/HD1/D1 synchronous playback.
Support NTP（Internet timing）, DHCP（automatically get IP）、Email(mail service)、UPNP（Universal Plug and Play）.

System	Main processor	High performance embedded microprocessor / GM8187
	Operating system	Embedded LINUX operating system
	Language	English, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, Etc.
	System resources	Pentaplex function: Live, recording, playback, backup& remote access
	Control mode	Front panel, USB mouse, Network, IR remote control

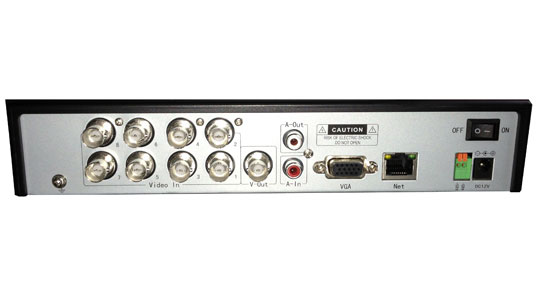

Video	Input	8CH, BNC(1.0Vp-p, 75Ω)
	Standard	PAL / NTSC
	Output	LCD:7 inch (Resolution:1024X768)/VGA output(Resolution:1280x1024)
Audio	Input	1CH, RCA(200-2800mV,30KΩ)
	Output	1CH, RCA(200-3000mV,5KΩ)
Display	Display split	1 / 4 /9
	Resolution	1440900, 1360768, 12801024, 1024768, 800*600
	Tour display	Support
	OSD	Camera title, time, video loss, camera block, motion detection, recording
Record	Video/Audio compression	H.264/G.711
	Image resolution	D1(704 * 576/704 * 480), HD1(704 * 288/704 * 240), CIF(352 * 288/352 * 240)
	Encoding speed	Main stream: CH1~3 D1 (1~25/30FPS) CH4~8 CIF(1~25/30FPS)
		Extra stream: CIF(1~5FPS),QCIF(1~5fps)
	Image quality	1~6 level (level 6 is the best),VBR effectively
	Record mode	Manual, schedule(always, motion detection, video lost, video blind, alarm), stop
	Record sequence	Manual>Alarm>Motion detection>General
Alarm	Triggering event	Record, Snapshot, Alarm, Email
	Motion detection	Area: 396(22 * 18), Sensitivity: 1-6 level
